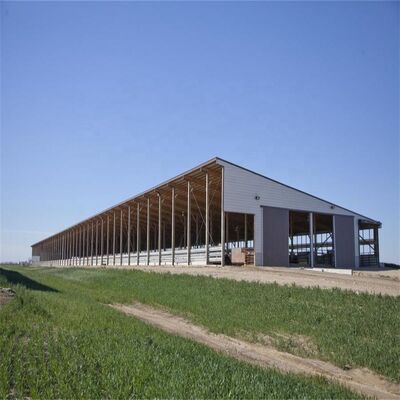

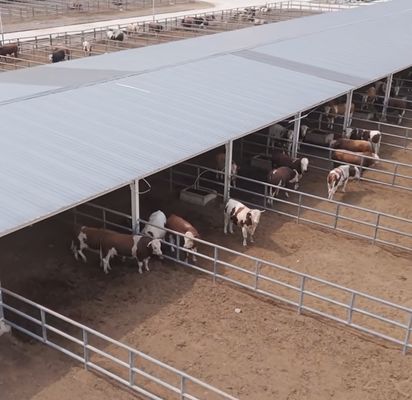

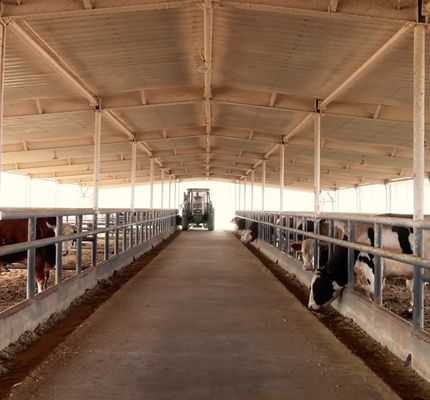

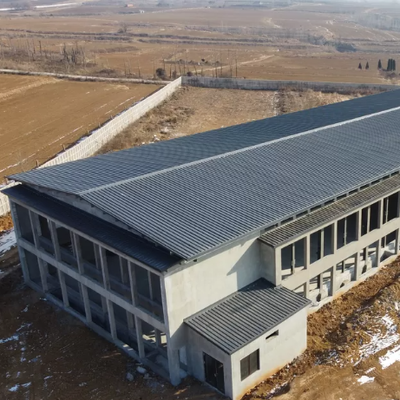

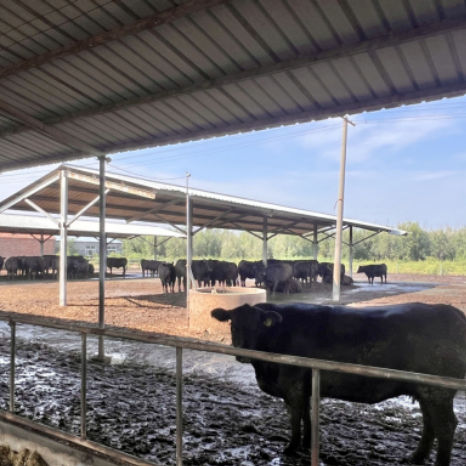

The Prefabricated Steel Structure Cattle Shed for Dairy Farm is a durable and cost-effective livestock housing solution specifically designed for dairy farms, beef cattle operations, breeding facilities, and modern agricultural projects. The building combines a high-strength steel framework with an efficient ventilation layout to create a comfortable environment that supports animal health, productivity, and farm management efficiency.
| Application |
Description |
| Dairy Farm |
Housing for milk-producing cattle |
| Beef Cattle Farm |
Livestock shelter for beef production |
| Breeding Farm |
Cattle breeding and reproduction facilities |
| Calf Housing |
Shelter for young cattle |
| Livestock Farm |
Multi-purpose cattle and livestock operations |
| Agricultural Facility |
Integrated farming and animal husbandry projects |
Compared with traditional concrete or masonry livestock buildings, steel structure cow sheds offer faster construction, lower maintenance costs, greater flexibility, and easier future expansion. All structural components are prefabricated in the factory to ensure consistent quality and rapid on-site installation.
Main Structural Features
| Feature |
Benefit |
| Portal Frame Structure |
Economical and efficient structural solution |
| Large Open Interior |
Improves cattle movement and operational efficiency |
| High Strength Steel Frame |
Long-term structural stability |
| Modular Design |
Easy future expansion |
| Flexible Layout |
Adaptable to different farming systems |
| Open-Side Design |
Enhanced natural ventilation |
| Fast Installation |
Reduced construction period |
Material Specifications
| Item |
Specification |
| Main Steel Frame |
Q235B / Q355B Steel |
| Columns |
Welded H Section Steel |
| Rafters |
Welded H Section Steel |
| Purlins |
Galvanized C/Z Purlins |
| Bracing |
Round Steel / Angle Steel |
| Tie Rods |
Galvanized Steel Rods |
| Bolts |
High-Strength Bolts |
| Gutter |
Galvanized Steel |
| Downpipe |
PVC or Steel Pipe |
Typical Building Parameters
| Parameter |
Typical Range |
| Building Width |
12m – 40m |
| Building Length |
Customized |
| Eave Height |
3.5m – 6m |
| Bay Spacing |
5m – 8m |
| Roof Slope |
10% – 20% |
| Wind Load |
Customized |
| Snow Load |
Customized |
| Seismic Design |
Customized |
Quality Inspection
| Inspection Item |
Inspection Content |
| Material Inspection |
Steel grade verification |
| Dimensional Inspection |
Fabrication accuracy |
| Welding Inspection |
Structural integrity |
| Galvanizing Inspection |
Zinc coating thickness |
| Assembly Inspection |
Connection verification |
| Packaging Inspection |
Shipping readiness |
FAQs
1. What is the primary use of this steel structure cow shed?
It is designed for dairy farms, beef cattle farms, breeding facilities, and livestock housing applications.
2. Can the cow shed be customized according to herd size?
Yes. The building dimensions, feeding layout, stall arrangement, and ventilation systems can all be customized.
3. What is the recommended width for a cattle shed?
The width depends on the feeding system and herd size. Common widths range from 12m to 40m.
4. Can the shed accommodate automatic feeding systems?
Yes. The structure can be designed to integrate feed alleys, feed bunkers, and automatic feeding equipment.
5. What roofing materials are available?
Single steel sheets, insulated sandwich panels, and steel sheet with fiberglass insulation systems are available.
6. Is insulation necessary for cattle housing?
It depends on the local climate. In hot regions, ventilation is usually more important than insulation.
7. How is ventilation achieved?
Natural ventilation can be provided through ridge vents, sidewall curtains, louvers, and open-wall designs. Mechanical ventilation systems are also available.
8. What steel grades are commonly used?
Q235B and Q355B structural steel are typically used for the primary framework.
9. What surface treatment is recommended?
Hot-dip galvanizing is highly recommended due to the corrosive environment created by livestock waste and moisture.
10. What is the expected service life?
With proper maintenance and corrosion protection, the structure can serve for more than 50 years.
11. Can manure management systems be incorporated?
Yes. Scraper systems, manure channels, and waste collection areas can be integrated into the design.
12. Are drinking water systems included?
Water pipelines and automatic drinking systems can be accommodated according to project requirements.
13. How are the components packaged?
Steel members are bundled and loaded into containers according to international shipping standards.
14. Do you provide installation support?
Yes. Installation drawings, online technical support, and engineer dispatch services are available.
15. What information is required for a quotation?
Please provide building dimensions, herd size, project location, local climate conditions, and preferred feeding arrangement.
